8. Rectangle area
This app calculates the area of a rectangle, given the length and width.
Working app at: https://pc-rectangle-area.anvil.app
Use a XY panel for the diagram region, so that the text labels can be placed over the diagram.
Download the diagram file
rectangle diagram
.8.1. Get started
Click: Blank App.
Choose: Material Design
8.2. Key components
Name the input textboxes: length and width.
Set both input textbox property type settings to number.
Name the labels on the diagram: diagram_length and diagram_width.
8.2.1. Error field
Drag and drop a label component onto the column panel below the width textbox.
In the properties panel: name section, set the name to error.
In the properties panel: text section, set the font_size to 16.
In the properties panel: appearance section, set the foreground_color to #ff0000.
In the properties panel: icon section, set the icon to fa:exclamation-triangle.
Code to hide or show error field takes the error parameter.
An error will be shown if error is a text string.
Passing None as the error parameter hides and clears the error field.
def do_error(self, error):
# check for error and display it if present
if error:
self.error.text = error
self.error.visible = True
else:
# hide error and clear it
self.error.text = ""
self.error.visible = False
8.3. Event Code
Both clicking the calculate button and pressing enter in the input textboxes produces the output.
def calculate_click(self, **event_args):
self.do_calculation()
def angle_pressed_enter(self, **event_args):
self.do_calculation()
def force_pressed_enter(self, **event_args):
self.do_calculation()
Changing the length or width inputs triggers the placement of those values on the diagram.
def length_change(self, **event_args):
self.diagram_length.text = self.length.text
def width_change(self, **event_args):
self.diagram_width.text = self.width.text
8.4. Calculation

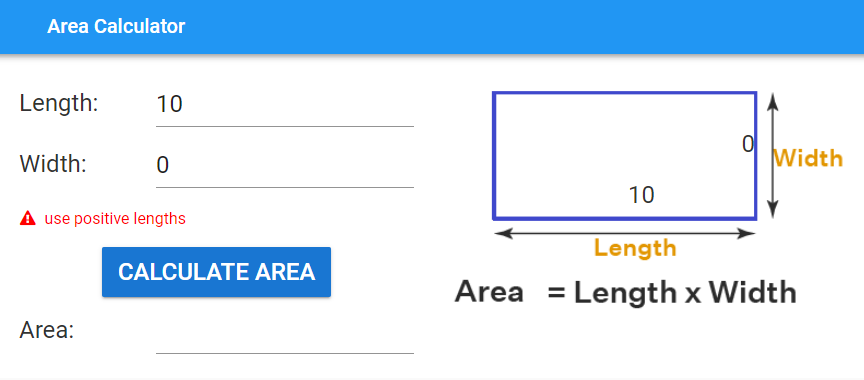

A try-except block is used to make sure an error output, use positive lengths, is given when the inputs are not valid.
Testing with invalid inputs shows that TypeError is the only error type to put in the try-except block.
Any values of 0 or less are then detected:
if val <= 0 or self.length.text <= 0 or self.width.text <= 0:
.f-stings allow convenient formatting to 2 decimal places.
e.g.
self.area.text = f'{val:.2f}''
def calculate_area(self):
try:
val = self.length.text * self.width.text
except TypeError as error:
self.area.text = None
self.do_error('use positive lengths')
else:
if val <= 0 or self.length.text <= 0 or self.width.text <= 0:
self.area.text = None
self.do_error('use positive lengths')
else:
self.area.text = f'{val:.2f}'
self.do_error(None)
8.5. Final Code
The full code is below.
from ._anvil_designer import Form1Template
from anvil import *
import anvil.tables as tables
import anvil.tables.query as q
from anvil.tables import app_tables
class Form1(Form1Template):
def __init__(self, **properties):
# Set Form properties and Data Bindings.
self.init_components(**properties)
def Calculate_click(self, **event_args):
self.calculate_area()
def width_pressed_enter(self, **event_args):
self.calculate_area()
def length_pressed_enter(self, **event_args):
self.calculate_area()
def length_change(self, **event_args):
self.diagram_length.text = self.length.text
def width_change(self, **event_args):
self.diagram_width.text = self.width.text
def calculate_area(self):
try:
val = self.length.text * self.width.text
except TypeError as error:
self.area.text = None
self.do_error('use positive lengths')
else:
if val <= 0 or self.length.text <= 0 or self.width.text <= 0:
self.area.text = None
self.do_error('use positive lengths')
else:
self.area.text = f'{val:.2f}'
self.do_error(None)
def do_error(self, error):
# check for error and display it if present
if error:
self.error.text = error
self.error.visible = True
else:
# hide error and clear it
self.error.text = ""
self.error.visible = False
Tasks
Add a dropdown to specify the number of decimal places in the output values.
Write an app to calculate the area of a circle.
Write an app to calculate the area of a triangle.
Write an app to calculate the area of a trapezium.
