4. Pounds to kgs
This code converts pounds to kgs.
This code creates a simple GUI application using the Tkinter library.
It displays a window with Label, Entry, Text and Button widgets
Users can input pounds, click the "Convert" button, and see the corresponding kilograms displayed.
4.1. Create the Main Window
Create the main application window using tk.Tk(). Set the window title, size, and background color:
import tkinter as tk
# Create the main window
root = tk.Tk()
root.title("Pounds to Kgs Converter")
root.geometry("550x300")
root.configure(bg="#ffffff")
root.mainloop()
4.2. Define Formatting Constants
Next, define some constants for colors, and font style.
You can customize these values as needed:
# Constants
WINDOW_BG_COLOR = "#ffffff"
INPUT_BG_COLOR = "#ffffff"
INPUT_FG_COLOR = "#0d6efd"
BUTTON_BG_COLOR = "#fd7e14"
BUTTON_FG_COLOR = "#ffffff"
OUTPUT_BG_COLOR = "#ffffff"
OUTPUT_FG_COLOR = "#dc3545"
FONT_STYLE = ("Arial", 32)
Update the window colour:
root.configure(bg=WINDOW_BG_COLOR)
4.3. Create Widgets
Now create the widgets (GUI elements) that will be displayed in the window:
highlightcolor, highlightbackground and highlightthickness are used to colour the entry and text widget borders the same colour as their text colour.
highlightbackground is applied when not clicking in the widget.
highlightcolor is applied when clicking in the widget.
# Create widgets
input_label = tk.Label(root, text="Pounds", bg=INPUT_BG_COLOR, fg=INPUT_FG_COLOR, font=FONT_STYLE)
input_entry = tk.Entry(root, width=10, bg=INPUT_BG_COLOR, fg=INPUT_FG_COLOR, highlightcolor=INPUT_FG_COLOR,
highlightbackground=INPUT_FG_COLOR, highlightthickness=1, font=FONT_STYLE)
output_label = tk.Label(root, text="Kgs", bg=OUTPUT_BG_COLOR, fg=OUTPUT_FG_COLOR, font=FONT_STYLE)
output_text = tk.Text(root, height=1, width=10, fg=OUTPUT_FG_COLOR, highlightcolor=OUTPUT_FG_COLOR,
highlightbackground=OUTPUT_FG_COLOR, highlightthickness=1, font=FONT_STYLE)
convert_button = tk.Button(root, text="Convert", width=20, bg=BUTTON_BG_COLOR,
fg=BUTTON_FG_COLOR, font=FONT_STYLE)
4.4. Place Widgets in the Window

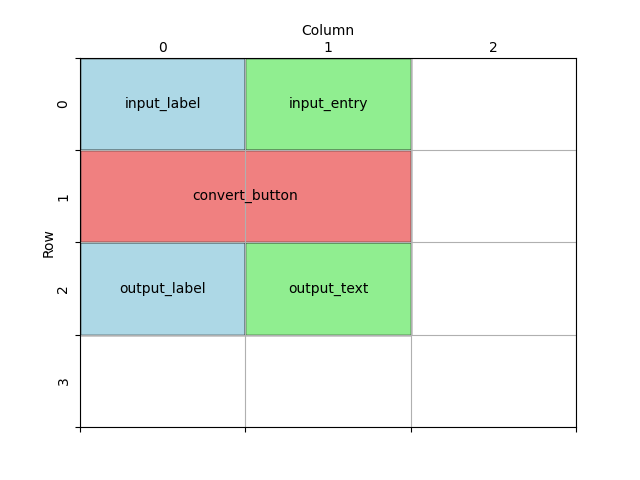

Design the grid positions:
Position the widgets using the grid() method:
# Place widgets in the window
input_label.grid(row=0, column=0, sticky="e", padx=10, pady=10)
input_entry.grid(row=0, column=1, sticky="w", padx=10, pady=10)
output_label.grid(row=2, column=0, sticky="e", padx=10, pady=10)
output_text.grid(row=2, column=1, sticky="w", padx=10, pady=10)
convert_button.grid(row=1, column=0, columnspan=2, padx=10, pady=10)
4.5. Define the Conversion Function
Create a function called convert_pounds_to_kgs() that performs the conversion and updates the result in the output_text widget.
convert_pounds_to_kgs() uses a try and except block to catch errors due to non numeric entries.The delete method of a Text widget requires the line.column as the first argument. e.g.
1.0 in c_text.delete(1.0, 'end')tk.END or 'end' can be used as the second argument to cause the deletion to go to the end of the widget.The insert method of a Text widget requires the line.column as the first argument. e.g.
1.0 in output_text.insert(1.0, f'{kilograms:.2f}')output_text.insert(1.0, f'{kilograms:.2f}') uses :.2f to format the celsius float to 2 decimal places.For string formatting see: https://www.w3schools.com/python/ref_string_format.asp
def convert_pounds_to_kgs():
try:
pounds = float(input_entry.get())
kilograms = pounds * 0.45359237
output_text.delete(1.0, "end") # Clear any previous result
output_text.insert(1.0, f"{kilograms:.2f}")
except ValueError:
output_text.delete(1.0, "end")
output_text.insert(1.0, "Invalid input.")
4.7. Full code
import tkinter as tk
# Constants
WINDOW_BG_COLOR = "#ffffff"
INPUT_BG_COLOR = "#ffffff"
INPUT_FG_COLOR = "#0d6efd"
BUTTON_BG_COLOR = "#fd7e14"
BUTTON_FG_COLOR = "#ffffff"
OUTPUT_BG_COLOR = "#ffffff"
OUTPUT_FG_COLOR = "#dc3545"
FONT_STYLE = ("Arial", 32)
def convert():
"""
Converts Pounds to Kgs and displays the result in the GUI.
Reads the Pounds value from the input field, performs the conversion,
and updates the result in the output text widget.
Raises:
ValueError: If the input is not a valid float.
"""
try:
pounds = float(input_entry.get())
kilograms = pounds * 0.45359237
output_text.delete(1.0, "end") # Clear any previous result
output_text.insert(1.0, f"{kilograms:.2f}")
except ValueError:
output_text.delete(1.0, "end")
output_text.insert(1.0, "Invalid input.")
# Create the main window
root = tk.Tk()
root.title("Pounds to Kgs Converter")
root.geometry("550x300")
root.configure(bg=WINDOW_BG_COLOR)
# Create widgets
input_label = tk.Label(root, text="Pounds", bg=INPUT_BG_COLOR, fg=INPUT_FG_COLOR, font=FONT_STYLE)
input_entry = tk.Entry(root, width=10, bg=INPUT_BG_COLOR, fg=INPUT_FG_COLOR,
highlightcolor=INPUT_FG_COLOR, highlightbackground=INPUT_FG_COLOR, highlightthickness=1, font=FONT_STYLE)
output_label = tk.Label(root, text="Kgs", bg=OUTPUT_BG_COLOR, fg=OUTPUT_FG_COLOR, font=FONT_STYLE)
output_text = tk.Text(root, height=1, width=10, fg=OUTPUT_FG_COLOR, highlightcolor=OUTPUT_FG_COLOR, highlightbackground=OUTPUT_FG_COLOR, highlightthickness=1, font=FONT_STYLE)
convert_button = tk.Button(root, text="Convert", width=20, bg=BUTTON_BG_COLOR,
fg=BUTTON_FG_COLOR, font=FONT_STYLE, command=convert)
# Place widgets on window
input_label.grid(row=0, column=0, sticky="e", padx=10, pady=10)
input_entry.grid(row=0, column=1, sticky="w", padx=10, pady=10)
output_label.grid(row=2, column=0, sticky="e", padx=10, pady=10)
output_text.grid(row=2, column=1, sticky="w", padx=10, pady=10)
convert_button.grid(row=1, column=0, columnspan=2, padx=10, pady=10)
# Start the main event loop
root.mainloop()
4.8. Lbs-to-Kg Test Table
Weight (lbs) |
Expected Output (kg) |
|---|---|
0 |
0 |
1 |
0.4536 |
2.2 |
1.00 |
"one" |
Invalid input |
